ZERO功率放大器

设计简述

SpacEND ZERO功率放大器采用137mm大表头单声道设计,应用目前先进的高效率D类音频放大线路,D类音频放大模组使用丹麦原进口装400w PURIFI 1ET400A功率模组,主电源采用荷兰原装进口hypex 1200w SMPS1200A400音频专用开关电源，PCB线路板采用了全新的处理工艺，确保信号传输的可靠性，输入端子分别采用NEUTRIK NC3FAAV1平衡插座与RCA插座二组输入，放大器电源系统每声道采用二颗10000UF NICHICON Super Through巨型音频发烧电容，功率放大器前级板采用独立供电，使用英国Talema电源牛，分别使用LT317/337与LT1085/1033二级稳压系统，全系列主滤波电容都采用了NICHICON Super Through音频发烧电容，放大器输出采用WBT喇叭接线柱确保系统连接的高效与可靠。机箱采用全铝设计，所有变压器均采用环氧树脂灌注密封处理，确保整机的震动控制在最小范围。

SpacEND ZERO power amplifier

an instruction manual

Design Introduction

The spacend zero power amplifier adopts 137mm large meter mono design, and the current advanced high efficiency class D audio amplifier circuit is applied. The class D audio amplifier module uses 400W purifi 1et400a power module originally imported from Denmark, The main power supply adopts hypex 1200W smps1200a400 audio special switching power supply imported from Holland, the PCB circuit board adopts a new processing technology to ensure the reliability of signal transmission, the input terminal adopts two groups of input of netrik nc3faav1 balanced socket and RCA socket respectively, the amplifier power supply system adopts two 10000uf nickel super for each channel The front board of the power amplifier uses independent power supply, talema power supply, lt317 / 337 and LT1085 / 1033 two-stage voltage stabilizing systems respectively. The main filter capacitors of the whole series use Nichicon super through audio fever capacitors, and the output of the amplifier uses WBT horn terminal to ensure the high efficiency and reliability of the system connection. The chassis is designed with all aluminum, and all transformers are sealed with epoxy resin to ensure that the vibration of the whole machine is controlled in the minimum range.

技术参数

输出功率： 425W @ 1% THD，4欧姆

整机失真：> 0.00017%（-116dB）@100w，4欧姆，20~20kHz

放大器效率：>94%

工作主电压：+-63V

信号输入：XLR 平衡输入与RCA单端输各一组

信号输出：WBT喇叭接线柱一组

输入电压：AC 110-220V可切换

通过电源主机的输入电压开关调整输入电压。注意！开机前请确认当前本地工作电压，调整功率放大器交流电源输入电压与本地电压一致后开机使用

电源保险丝：AC 220V（T1.5A）；AC 110V（T2.5A）

整机消耗功率：25W

主机净重：10KG

主机机箱尺寸：410mmx230mmx120mm

Technical Specifications

Output Power：425W @ 1% THD，4ohm

THD+N：0.00017%（-116dB）@100w，4欧姆，20~20kHz

Amplifier Efficiency：>94%

Main Operating Voltage：+-63V

Signal input：XLR balanced input and RCA single ended input are set respectively

Signal output：One set of XLR balanced input and one set of RCA single ended input

Signal Input： WBT Horn terminal group 1

Input Voltage：AC 110-220V

The input voltage is adjusted by the input voltage switch on the back of power supply. Attention! Please confirm the current local working voltage before starting the power amplifier, and adjust the AC power input voltage of the power amplifier to be consistent with the local voltage before starting the power amplifier

Power Fuse：AC 220V（T1.5A）；AC 110V（T2.5A）

Power Consumption：25W

Net weight of main engine：10KG

Main Unit Size：410mmx230mmx120mm

主机工作电压使用调整：根据不同地区使用的电压标准不同本机可以调整110/230v，使用110v时(图一J3短路；图二中红圈内的开关调整至110v)；使用230v时（图一J3开路；图二红圈内的开关调整至220v）

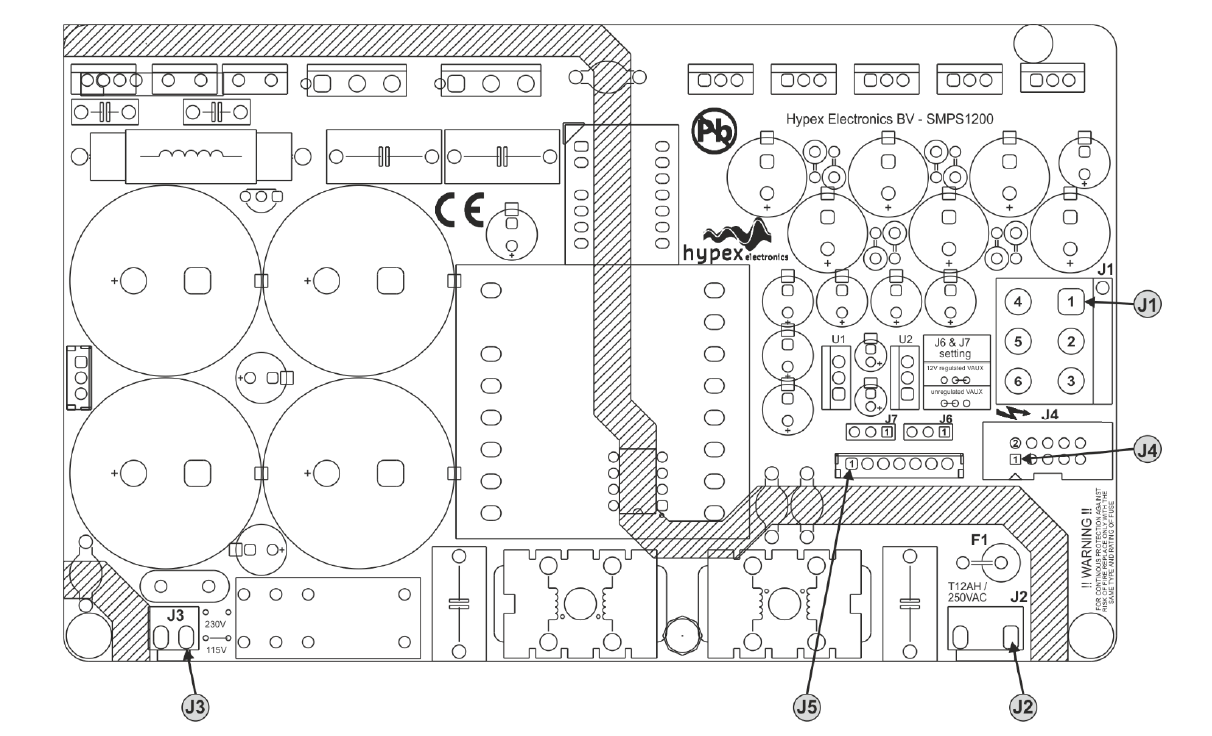

图一

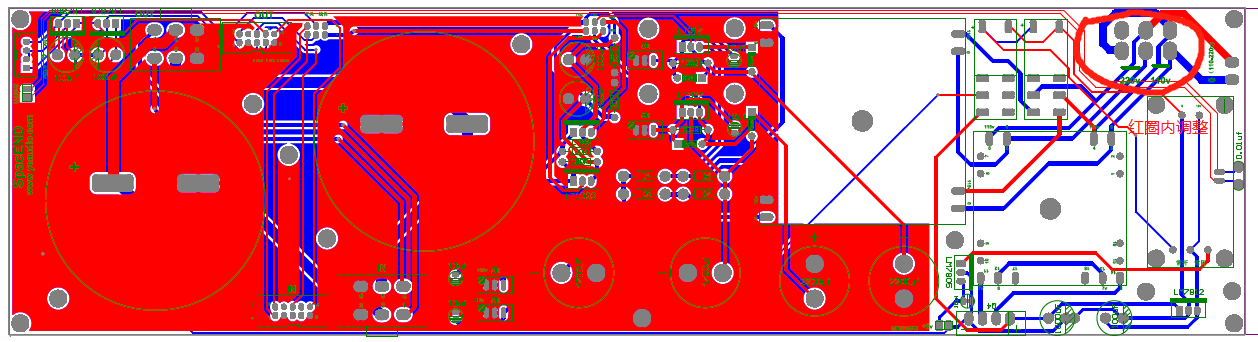

图二

Main engine working voltage adjustment: According to different voltage standards used in different regions, this machine can adjust 110 / 230 v. when using 110 V （J3 in Figure 1 is short circuited; the switch in red circle in Figure 2 is adjusted to 110 V）; when using 230 V （J3 in Figure 1 is open circuited; the switch in red circle in Figure 2 is adjusted to 220 V）

保修条款

整机保修一年，机器停产后负责维修五年

附件清单

1、功率放大器主机一套二台

2、美标国标电源线二条

3、备用保险丝二枚

4、使用说明书一本

警告

功率放大器电源未完全接通前，严禁开启工作电源（AC220/100伏）

Warranty

The whole machine is guaranteed for one year, and the machine is responsible for maintenance for five years after shutdown

Accessories

1.One set of two power amplifier hosts

2.Two American and national standard power lines

3.Two spare fuses

4.One manual

Warnings

It is forbidden to turn on the working power supply (AC220) before the power supply of the power amplifier is fully connected / 100 V)

         SpacEND 音响工作室

Made in Shanghai
